Function characteristics
1. Simple and friendly man-machine touch screen controller, easy use
2. smooth beat,quick speed,high accuracy, simplify control system
3. Simple structure, low failure rate and convenient maintenance
4. light structure ,low noise,low energy consumption
5. customized vision system
6. Only need a little floor space, floor utilization ratio is high
7. Flexible use method, can most handle multiply production lines
8. Manipulator finger styleso can work in a variety of a variety of allplications
9. Manipulator arm Lightsome strong, energy conservation and environmental protection
Technical parameters

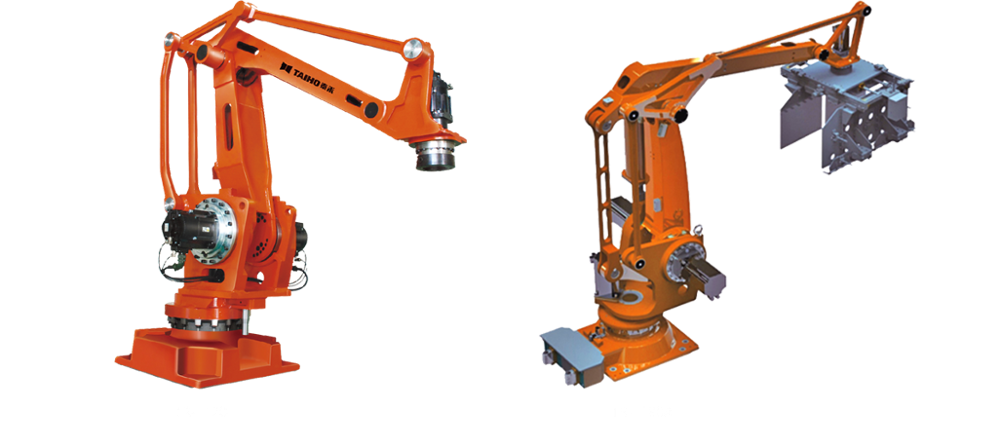

| Model | TR-F120 | TR-F180A |
| Function | pllatizing ,stacking and handing,loading and unloading | |
| Axis number | 4 Axis | |
| Max working radius | 2350mm | 3100mm |
| Max load | 120kg | 180kg |
| Range of motion | J1 ±165° | J1 ±165° |
| J2 +85°to -40° | J2 +85°to -40° | |
| J3 +120°to -20° | J3 +120°to -20° | |
| J4 ±300° | J4 ±300° | |
|

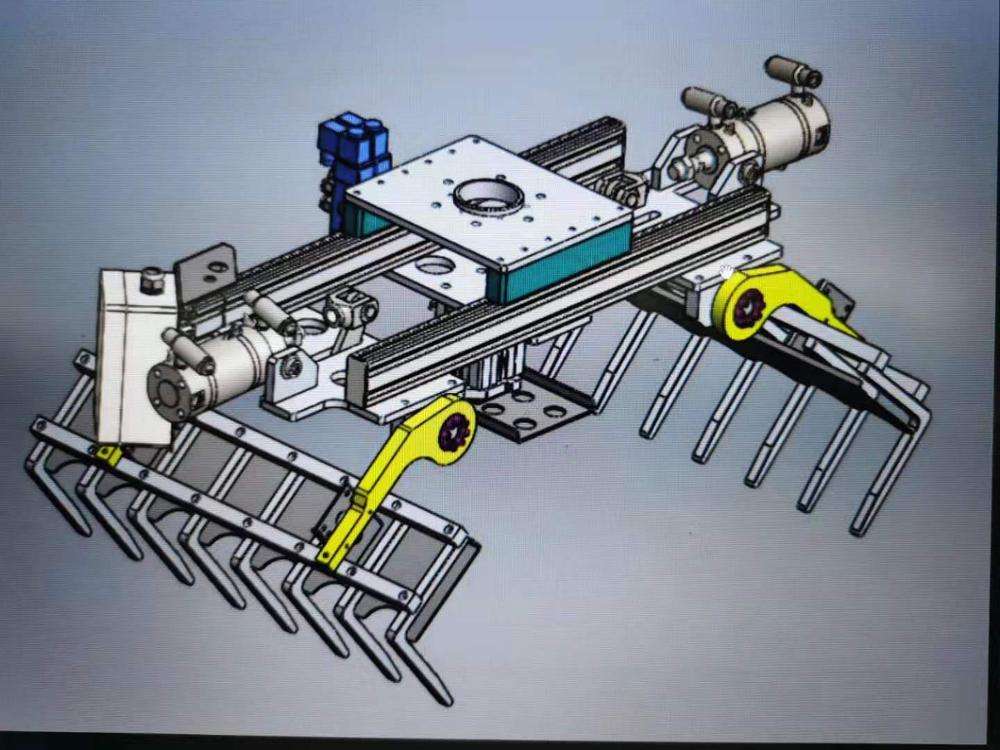

Machine tongs |
pallet, finger, sucker and so on |
|
| Positoning accuracy | ±0.1mm | ±0.1mm |
| Robot quality | 925kg | 1350kg |
| Installation method | Ground installation | Ground installation |
|
Compressed Air |
0.5Mpa | 0.5Mpa |
| Installation conditions | Ambient tem: 0~45° | Ambient tem: 0~45° |
| Ambient humidity: 20%-75% RH | Ambient humidity: 20%-75% RH | |

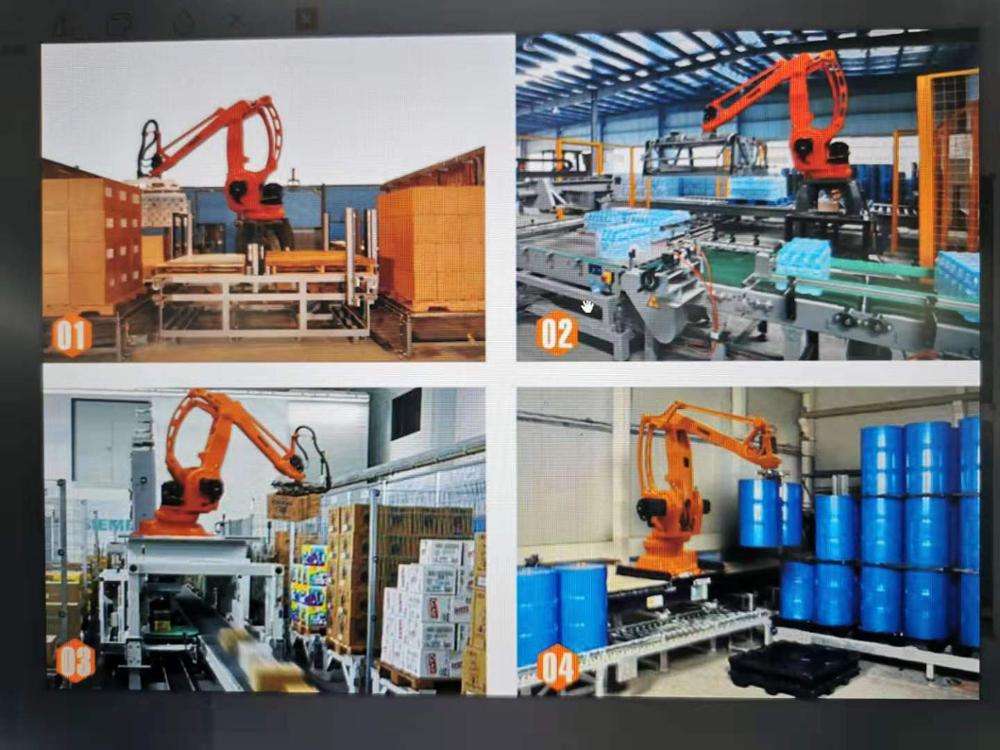

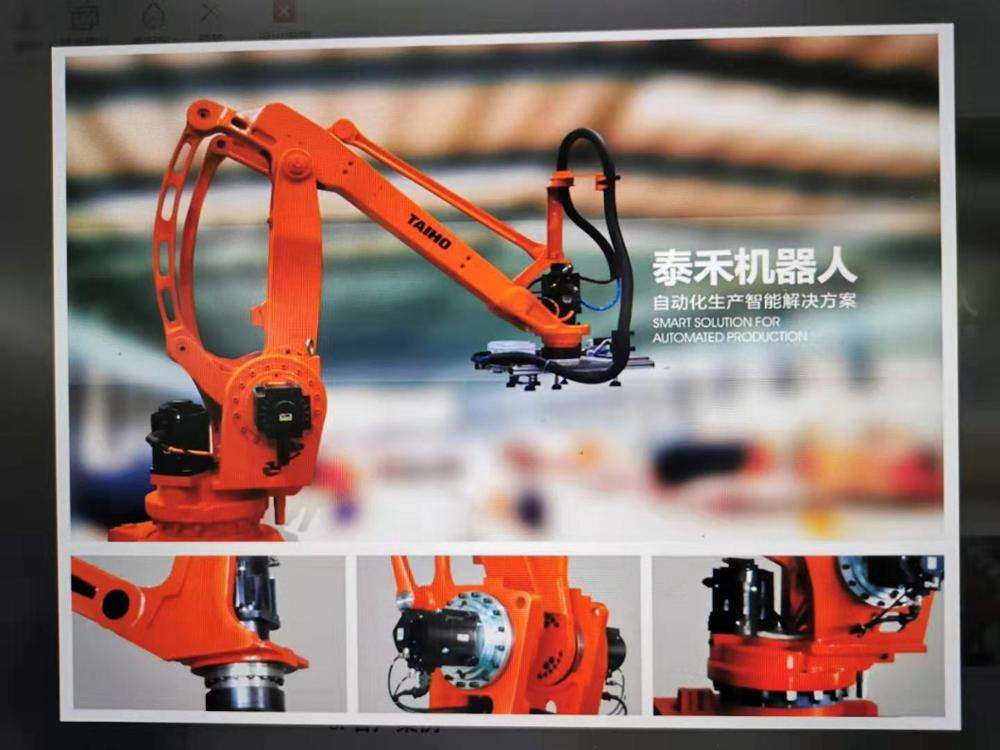

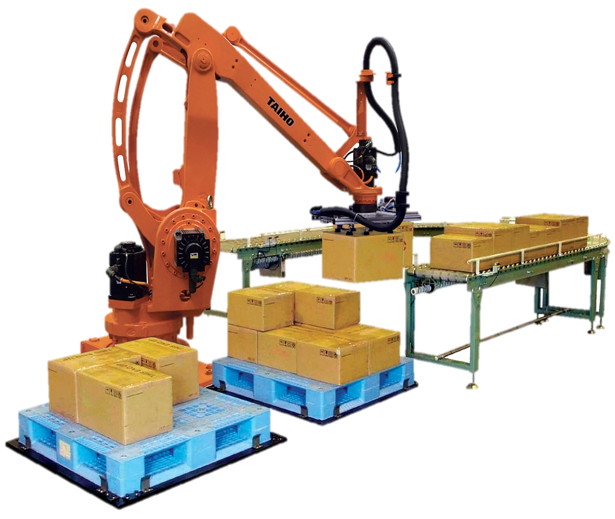

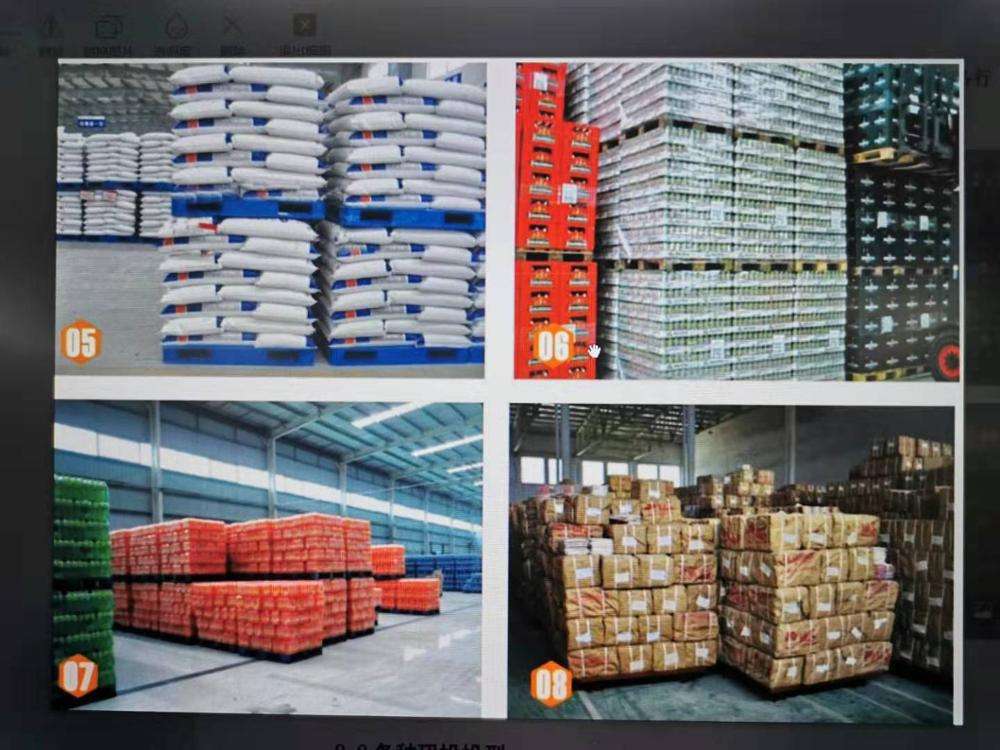

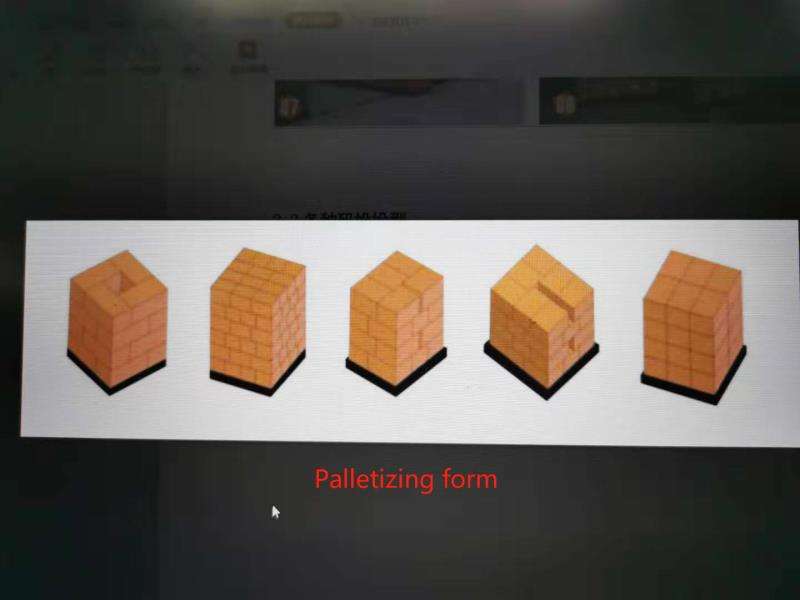

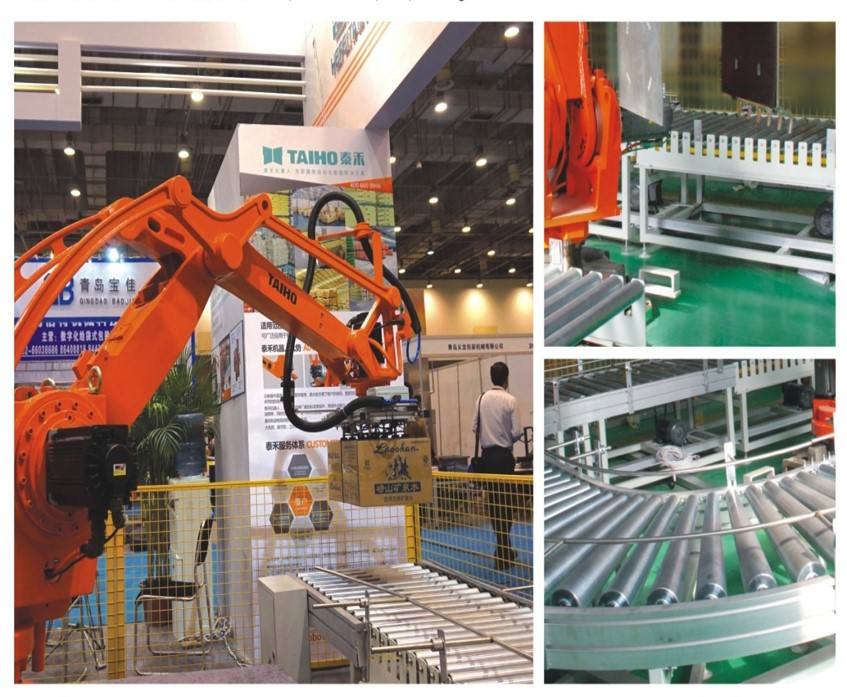

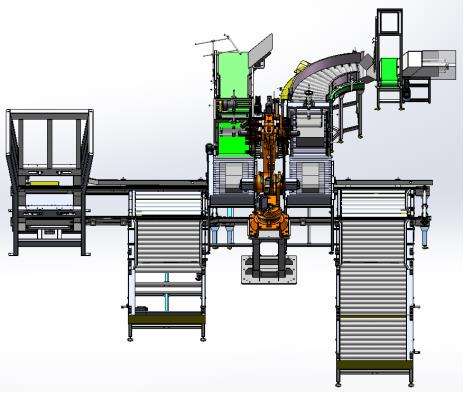

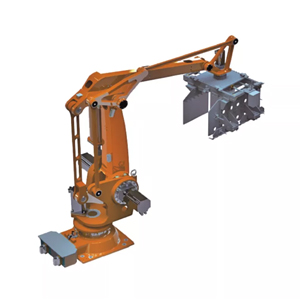

Product Show
