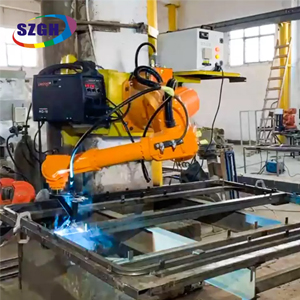

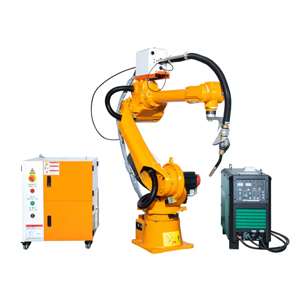

Industrial CNC Arc mig Welding Robot /Robotic Arm 6 Axis With Servo Motor for welding

Description



Features:

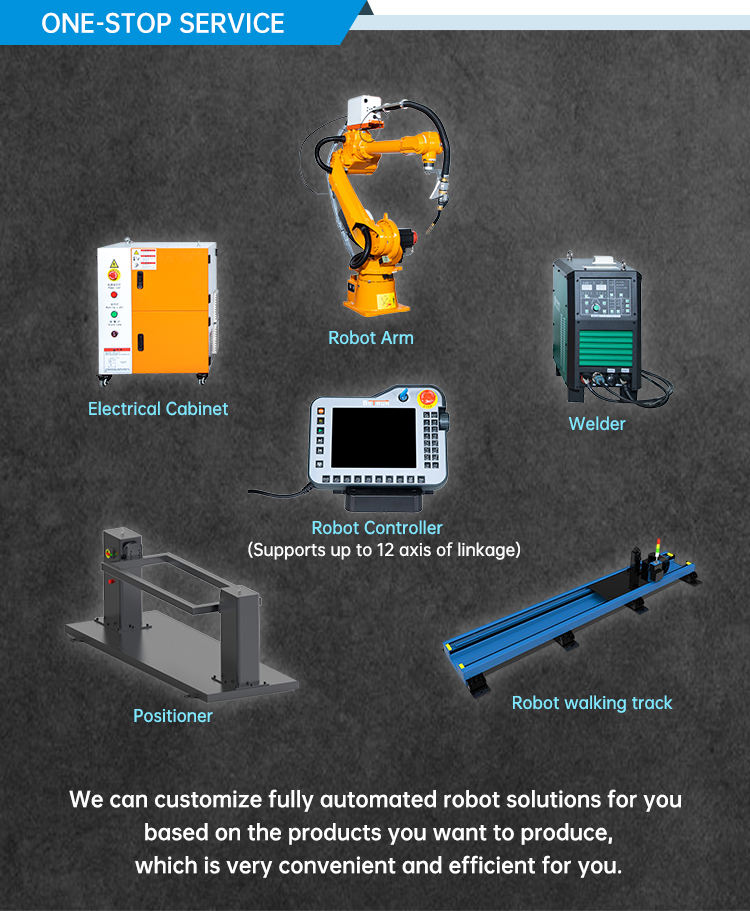

★ Support up to 12 axis control, realizes the control of external axes (traveling axes and positioner).

★ Structural optimization algorithm suitable for the body control of various types of structure.

★ Open structure for synchronization of international technology and extension of functions. Industrial standards & reliable stability.

★ Software PLC functions facilitate logic control. Process functions make programming easy.

★ Modular setting of functions suitable for diverse applications. Safety module ensures safe production of the robots.

★ Suitable for multiple increments; absolute servo. Improved computer bus connection ensures reliability and practicability.
Storage
2 GB

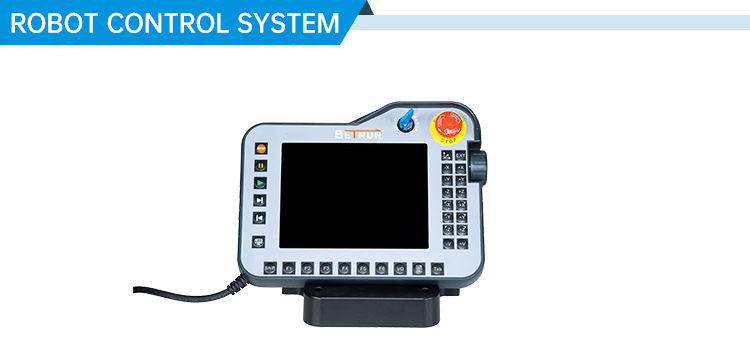

Teaching box
Full keyboard+touch screen, mode select switch, safety switch, emergency switch
No. of controlled axes
6+6 axes, 6 basic axes +6 external axes
Interface
Multiple encoder signal interfaces, dedicated interface for robot terminal, Ethernet interface, serial communication
Safety module
The emergency and robot anomaly signals are linked to ensure rapid stop of the robot
Mode of operation
Teaching, representation, remote control
Mode of programming
Online teaching, process programming, teaching by dragging
Motion function
Point-to-point, linear, circular
Command system
Motion, logic, process, computation
Mode of control
Position control
Anomaly detection Function
Emergency stop anomaly, servo anomaly, anti-collision, safety maintenance, arcing anomaly, user coordinate anomaly, tool coordinate anomaly

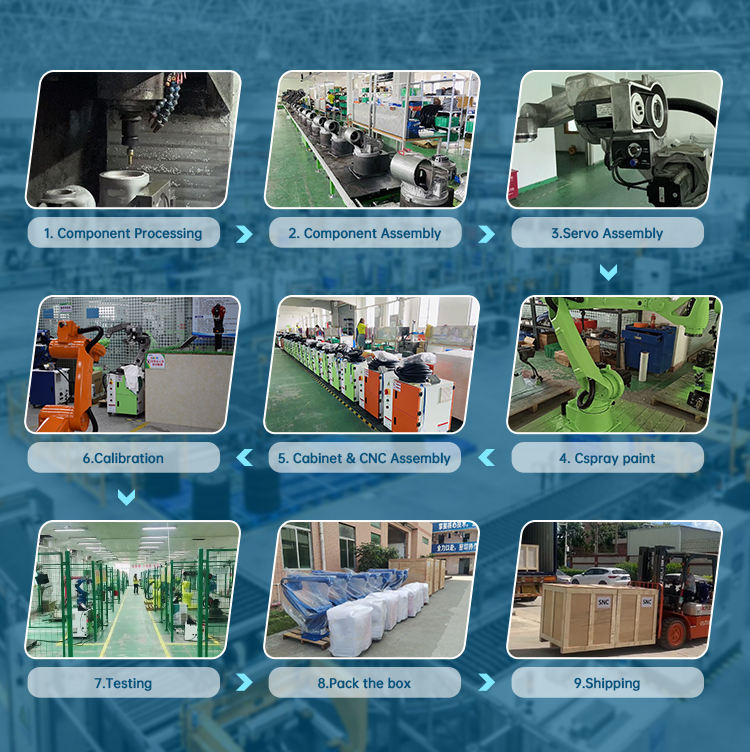

Production Process
