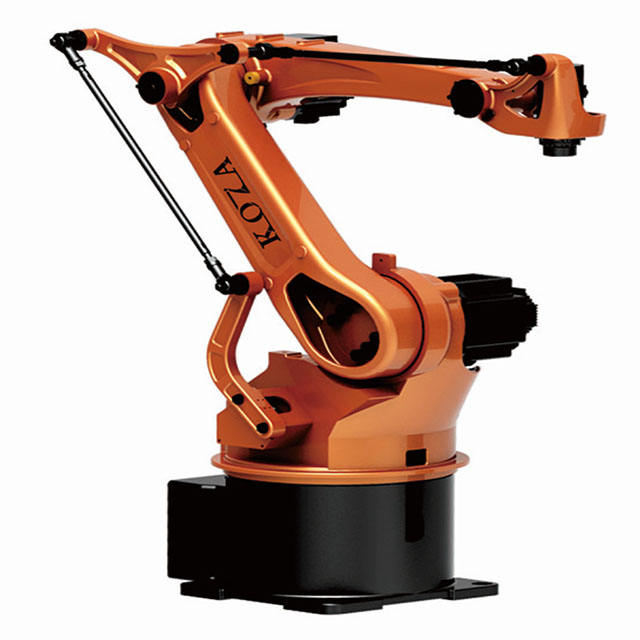

Best price articulated robot arm precision full automatic industrial robot

Best price articulated robot arm precision full automatic industrial robot

The size of aluminum alloy support foot: 175mm high, 15mm adjustable, the actual width of each pair of two door opening is 950mm, please reserve enough space for convenient installation and use
Description

Applicable Industries:
Manufacturing Plant
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
PLC, Motor
Condition:
New
Place of Origin:
Guangdong,China
Brand Name:
KOZA
Weight:
180 kg
Warranty:
1 Year
Weight (KG):
180 kg
Type:
RMD08
DOF:
4
"Drive Method":
AC Servo Drive
"Payload (kg)":
8
"Repeatability (mm)":
±0.08
Motion Range(°) Top Velocity(m/s):
J1 J2 J3 J4
Top Velocity(°/s):
367.5
Wrist Allowable Load lnertia (kg.m²):
0.25
"Motion Radius (mm)":
1433
Machine Weight(kg):
180
After Warranty Service:
Video technical support, Online support, Spare parts
Local Service Location:
None
After-sales Service Provided:
Field installation, commissioning and training

Packaging & Delivery
Packaging Details
Export standard wooden box
Port
HUANGPU PORT
Lead Time:
Quantity(pieces) 1 - 1 2 - 10 11 - 50 >50
Est. Time(days) 10 30 60 To be negotiated

VR

Specification
Type RMD08
DOF 4
Drive Method AC Servo Drive
Payload (kg) 8
Repeatability (mm) ±0.08
Motion Range(°） J1 ±170
J2 90～﹣40
J3 68～﹣90
J4 ±360
Top Velocity(m/s) J1 251
J2 195
J3 195
J4 367.5
Wrist Allowable Load lnertia (kg.m²) 0.25
Cycle Time (r/h) 1800①
Motion Radius (mm) 1433
Machine Weight(kg) 180

Product Description
