High Speed Intelligent Paper Cup Forming Machine

High Speed Intelligent Paper Cup Forming Machine

$128.00 $1680
Description



Please find our machine specification and payment term as below:



Payment TT/LC
Delivery 60-120 days

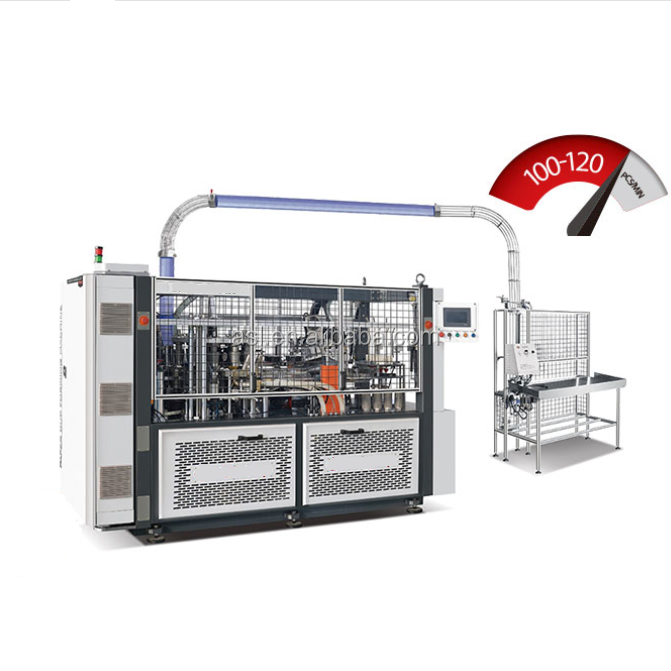

High Speed Intelligent Paper Cup Forming Machine

Mechanical Quality Guarantee

  1. Mechanical parts are guaranteed for 5 years or production reaches 200 million cups, electrical parts are guaranteed for 1 year.
  2. All parts on forming table are easy to access for maintenance.
  3. All parts under forming table are lubricated by oil bath. Oil should be changed every 4-6 months with specified oil.

High Speed Intelligent Paper Cup Forming Machine

Mechanical Character

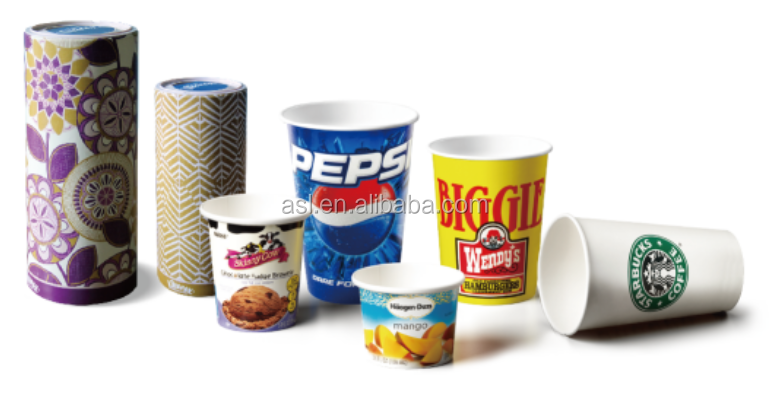

CIP-118S intelligent paper cup machine is using tabletop layout, which isolates the transmission parts and the forming molds. This layout is convenient for cleaning and for maintenance. The machine use longitudinal shaft transmission structure, barrel indexing cam and gear drive, ensuring stability and accuracy. All transmission and driving parts are running in oil bath. The production speed is up to 118/min. depends on size and material. This machine is good for producing 5-16 oz. cold/hot cups.







CIP-138S

CIP-118S+ZY

CIP-118S+SY
Weight Weight Weight
3500 kg 3500 kg 3000 kg
Machine encasement dimensions Machine encasement dimensions Machine encasement dimensions
Machine:
3100 x 1600 x 2100mm (collection table 1230 x 610 x 1900mm)
with visual system:
3100 x 1600 x 2350mm(collection table1230 x 610 x 1900mm)		 Machine:
3100 x 1600 x 2100mm (collection table 1230 x 610 x 1900mm)
with visual system:
3100 x 1600 x 2350mm(collection table1230 x 610 x 1900mm)		 Machine:
3100 x 1600 x 2100mm (collection table 1230 x 610 x 1900mm)
with visual system:
3100 x 1600 x 2350mm(collection table1230 x 610 x 1900mm)
Connecting power Connecting power Connecting power
three-phase 380V,26KW three-phase 380V,26KW three-phase 380V,24KW
Compressed air Compressed air Compressed air
0.6-0.8MPa,0.5m³/min 0.6-0.8MPa,0.5m³/min 0.6-0.8MPa,0.5m³/min
Production capacity Production capacity Production capacity
110-138 pcs/min 100-120 pcs/min 100-120 pcs/min
Paper types Paper types Paper types
single PE/double PE/PLA single PE/double PE/PLA single PE/double PE/PLA
Paper grammage Paper grammage Paper grammage
210-330g 210-330g 210-330g
Product range Product range Product range
(D1)φ60-95mm (H)50-135mm
(D2)φ40-75mm (h)5-12mm		 (D1)φ60-95mm (H)50-135mm
(D2)φ40-75mm (h)5-12mm		 (D1)φ60-95mm (H)50-135mm
(D2)φ40-75mm (h)5-12mm
Visual inspection system Visual inspection system Visual inspection system
bottom heating bottom heating bottom heating
assembly assembly assembly
Long term magazine Long term magazine Long term magazine
control panel control panel control panel
10.2 inches 7 inches 7 inches
