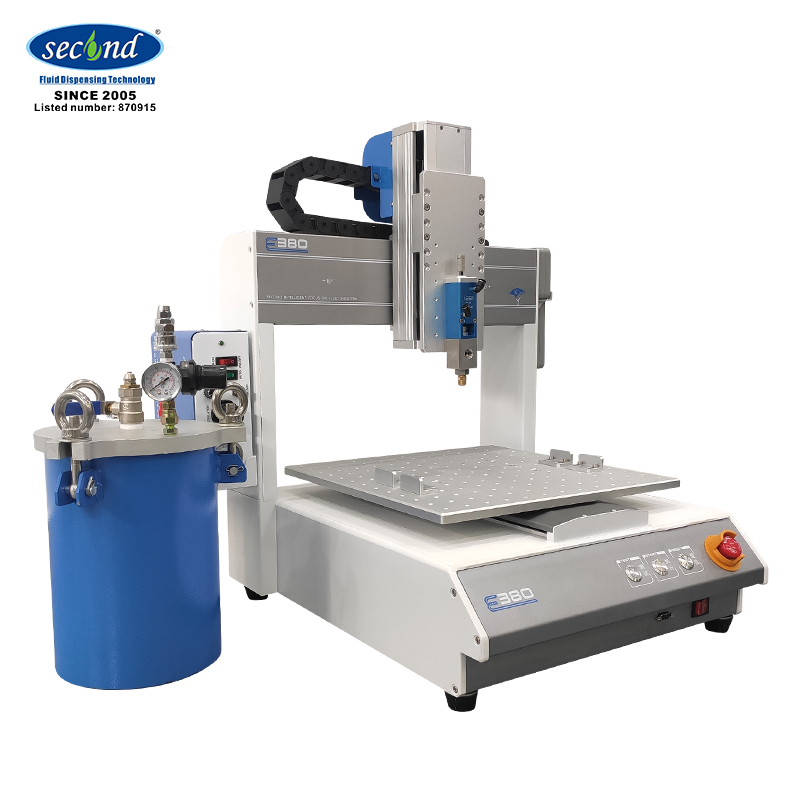

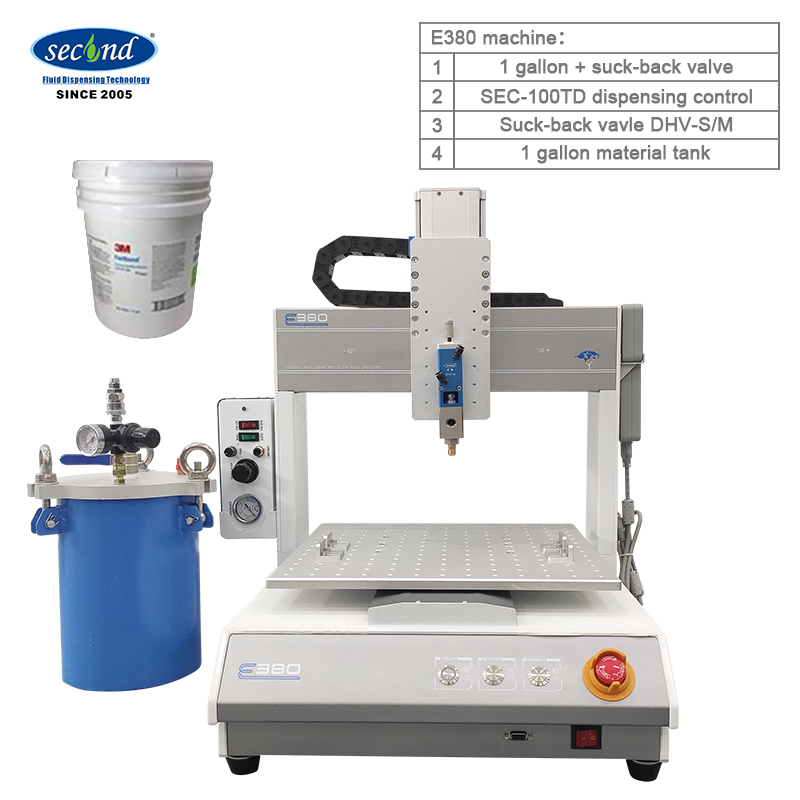

Stable quality second intelligent automatic Epoxy Resin 1.5 gallon glue dispensing machine

Stable quality second intelligent automatic Epoxy Resin 1.5 gallon glue dispensing machine

$980.00 $1680
Description

Model
SEC-E380
Working range
380(X)*380*(Y)*100(Z)mm
Max payload
7kg/5kg
Max travel speed
500mm/sec(XY)/100mm/sec(Z)
Transfer method
Stepper motor, belt, precision rail
XYZ position accuracy
±0.008mm
Resolution
0.01
Memory storage
999 program setup (each program store up to 65535 spots)
Operating method
LCD, Teach pendant
Motor
Precision stepper motor
Movement patterns
3 axis spot to spot, continue line, arc
I/O
1 input, 4 output (support expansion)
Power supply
AC220V 50/60Hz 0.5kw
Working environment
Temperature 0-40℃, Humidity 20-90%
Machine dimension
520*583*645mm
weight
48kg

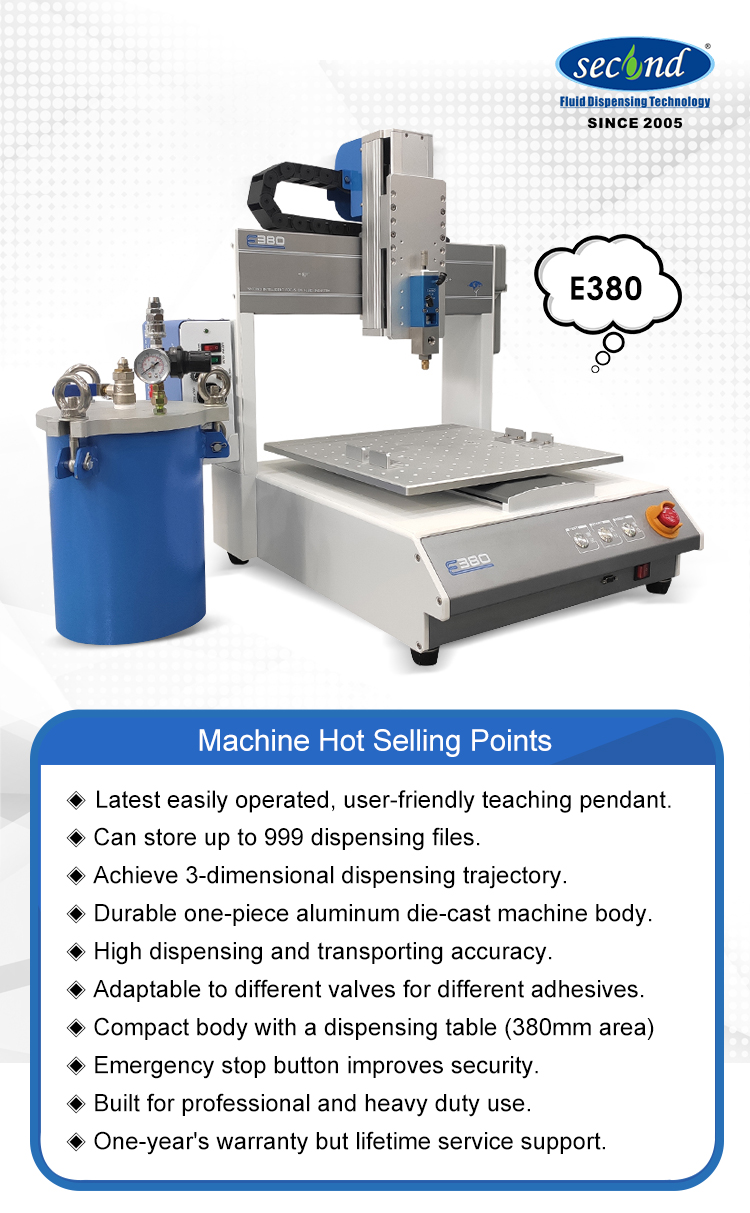

Features:

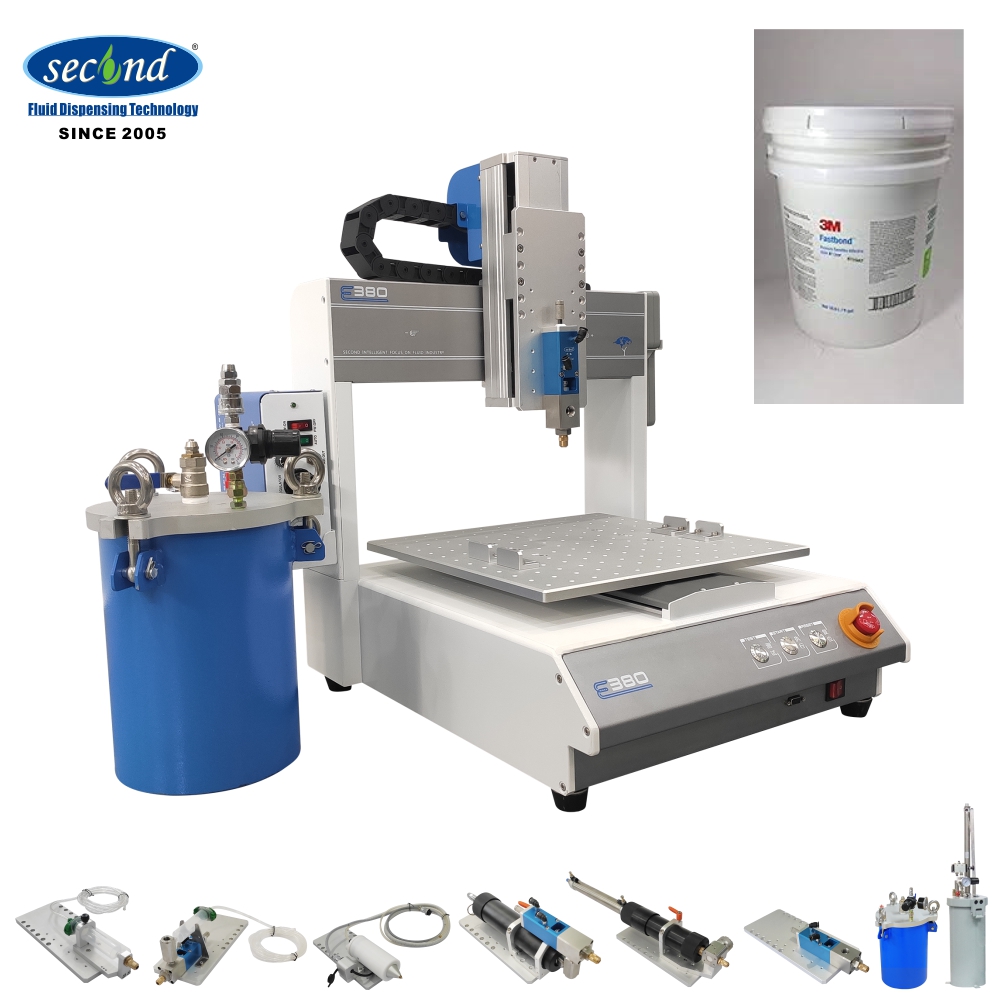

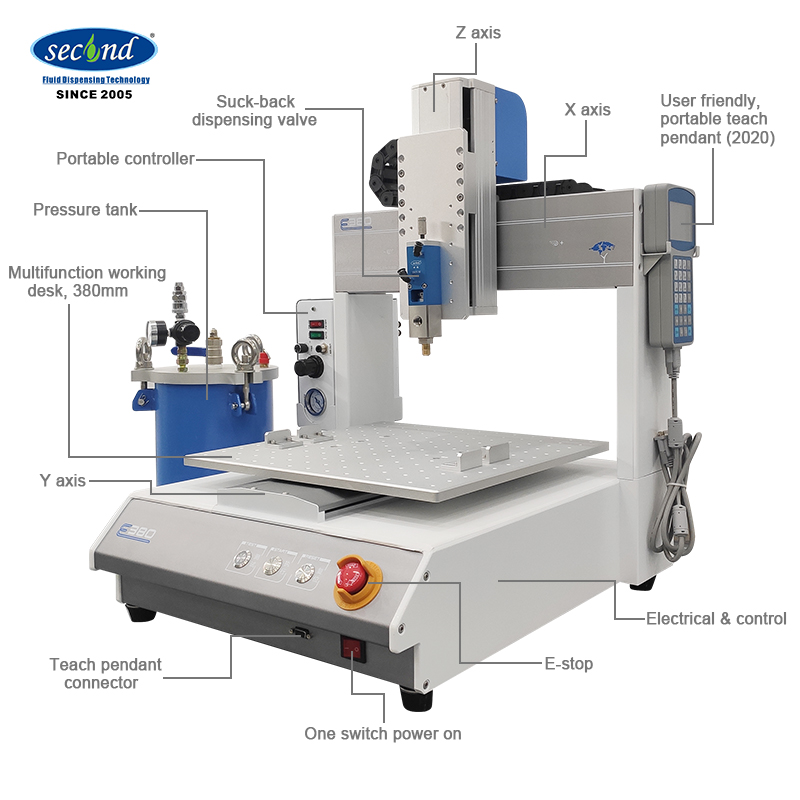

This new machine’s main body is made out of one-piece aluminum casting molding, strong structure, stable and user friendly operation. It provides 380x380x100mm maximum XYZ strokes for extra dispensing needs. The machine is designed to adapt different type of dispensing applicators for different fluid or glue. Once your bought the Cartesian CNC machine, you just need to choose different applicators. It is really One for All. According to our research, with the seven different applicators, you are covering about 80% of the desktop dispensing needs. The multi purposes clamping system allow to match with different material filling devices, and valves, and allow quick changeover. It achieves the dispensing of different products of different processes. This is really a good machine from a reliable factory, with over 15 years focus business on the fluid and glue dispensing, potting industry. Dispensing and potting are the precise manipulating between air, fluid, or adhesive, don’t waste your money on the cheap and non professional suppliers, you will end up buying many spare parts, and a new machine again.
Applications:

The machine can be used to dispense various type of fluid, adhesive materials for fixing or protecting PCB electronic parts. It can also be used for bonding of mobile phone and notebook cases, LCD glass, LED dispensing, Semiconductor sealing, optical lens dispensing, and packaging, automotive parts, hardware parts, and others.

Special Function : File inserting

Powerful system compatibility with the Logoshop software allow to import mainstream design software, such as Auto CAD, Coral Draw, etc.to generate a different file formats ( NC, .AI,.DXF,.JPG, BMP, scanner, etc.)
