Professional Auto RK-1500 Glass Plate CCD Fastener AOI Sorting Machine Optical Visual Screening Equi

$980.00 $1680
Description



Rubber O-ring AOI Optical Visual Screening Equipment

Types: RK-1500 Glass Plate Optical Sorting Machine

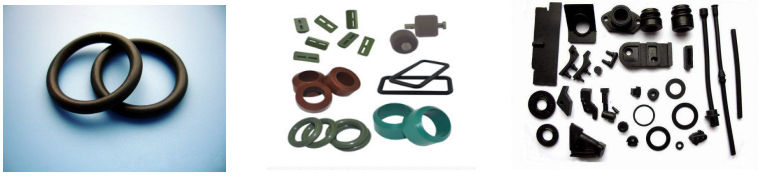

Suited for: O-ring, Seal, Rubber Products and Similar Parts.

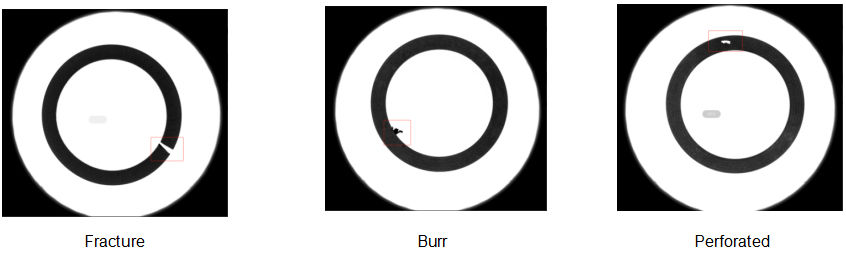

Inspection Screen

The machine comes equipped with three high-precision industrial cameras.

Camera 1 is Horizontal camera, inspecting the thickness.

Camera 2 is Vertical top view camera, to inspect inner diameter, outer diameter, and other parameters of each product.

Camera 3 is Vertical top view camera used for inspecting for any appearance defects such as burrs and missing material and other requirements according to customers.

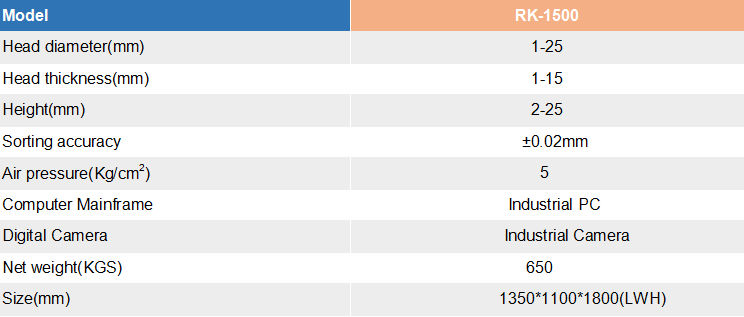

Technical Parameter:
Note: Customized service can be provided according to the detect demand.

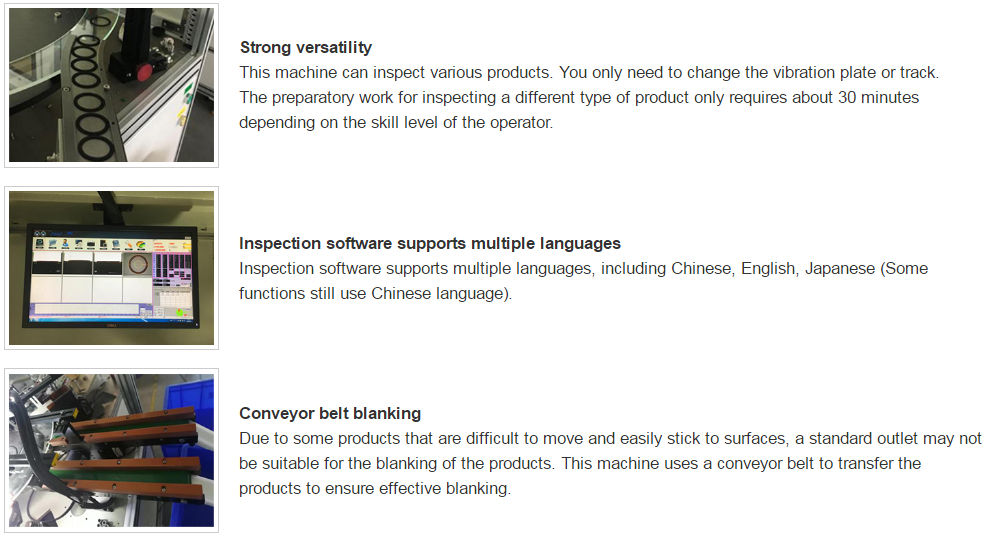

Machine Features:

1. Highly-transparent glass plate.
2. Fit for grease-free parts which can be securely placed on the glass plate.
3. Wide detection range of fasteners, mobile phone parts, rubber products, electronic components, special-shaped hardware, screw etc.
4. Detection camera: can add 2-6 sets of cameras according to the inspect items.
5. Detection speed: 300~1000 PCS /Min Depend on individual case.
6. Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
Inspection Items:
Diameter, Hole diameter
Roundness
Length
With coating
Width
With mark
Height, Thickness
With cut/tapering
Surface defect
Parallel edge length
Deformed, Broken
Broken pin, Recess depth
Different shape
With thread
Crack
Fine or coarse thread
Burrs, Chips
Tooth numbers
Across Corners
Pitch
Across Flat
Slanted thread
Chamfer angle
Minor diameter
Included angle
Major diameter
Arc radius
Hardness
Concentricity
Recognition of different materials

With or without heat treatment
