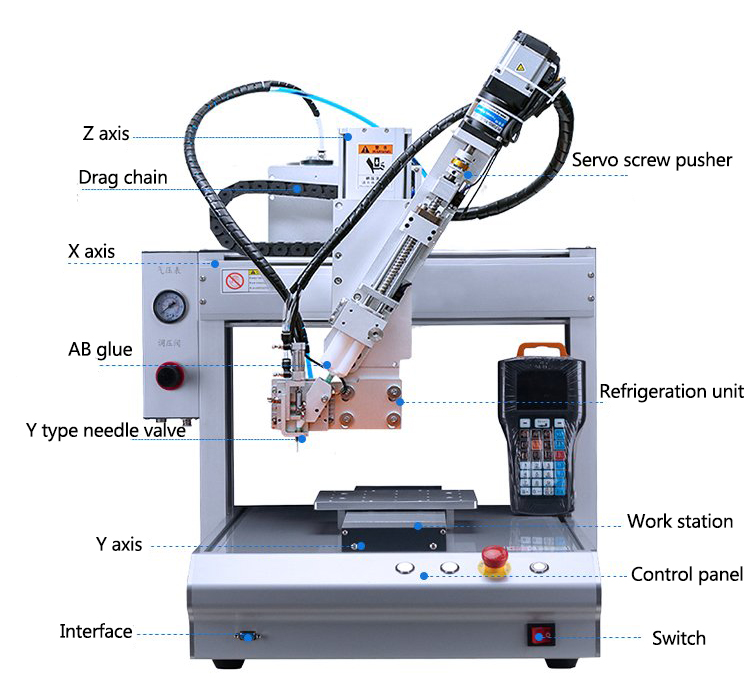

Intelligent Automatic Tip Clean Two Component AB No Clog Screw Servo Push Rod Glue Dispenser Machine

$880.00 $1680
Description

Products Description
Products Parameters
Model
JTS-3/4/5/6/7 Glue/Adhesive Dispensing Robot
Power
AC 110-220V AC
Controllable Axis
3
Movable range
X
300/400/500/600/700mm
Y
300/400/500/600/700mm
Z
100mm
Max moving speed
X
600mm/s
Y
600mm/s
Z
400mm/s
Repeatability accuracy
±0.02 mm
Air pressure
0.5 ~ 0.7 Mpa
Programs Type

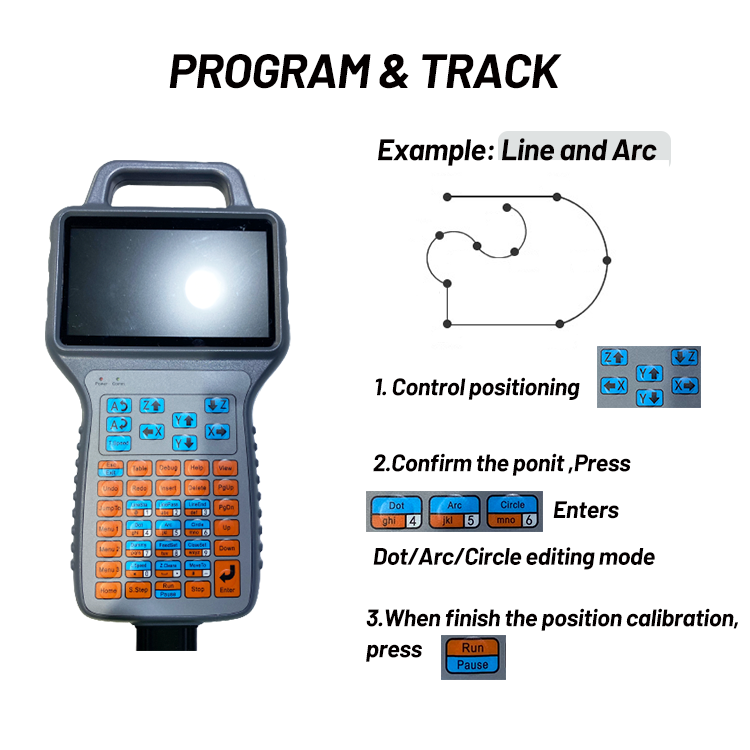

Teach Pandent
Storage for Programs
Up to 100 Programs, single Programs up to 1000 points
Working Temperature
0-40℃
Working Humidty
20%-90%(no condensation)
Weight
44/60/65/72/80 kg
Size
516x610x596 / 616x610x696 / 716x610x796 / 816x610x896 / 916x610x996 mm
