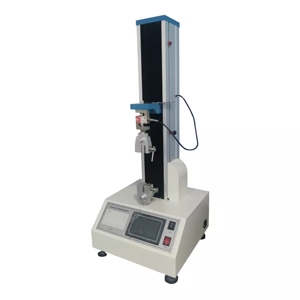

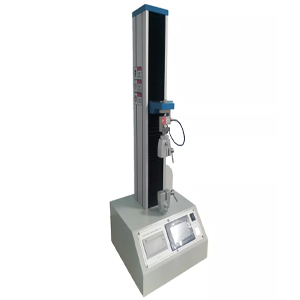

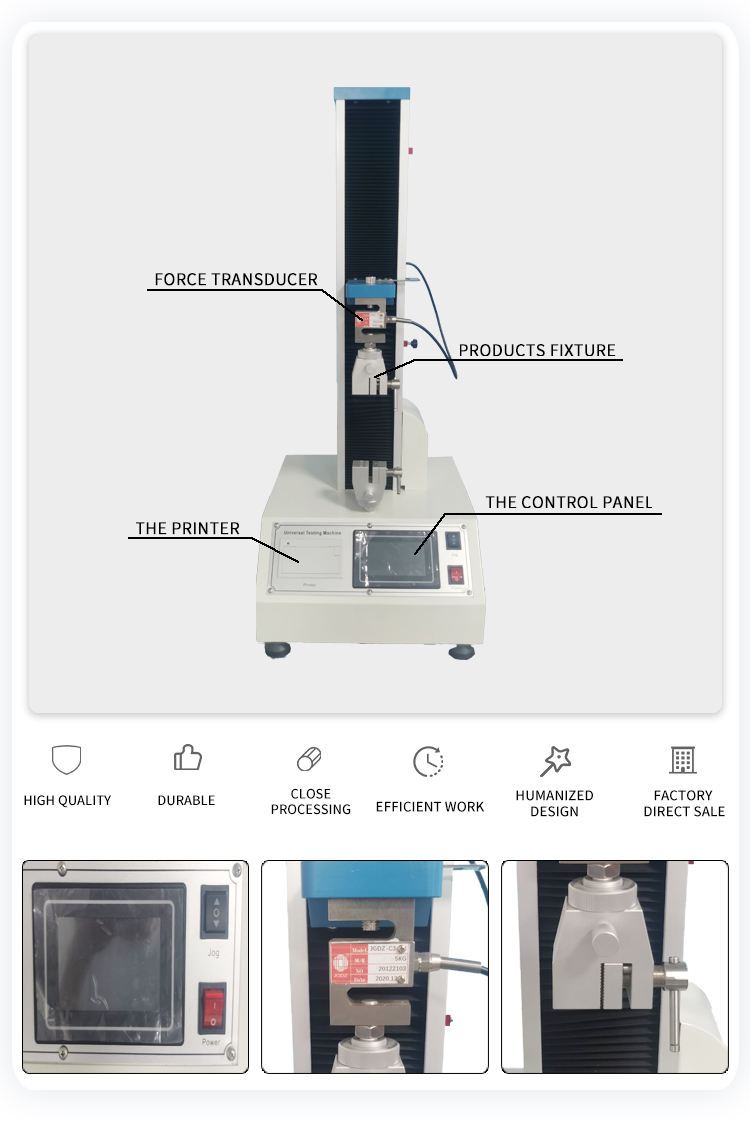

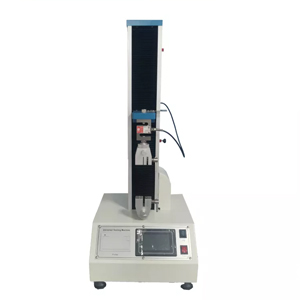

Mechanical Tensile Testing Equipment Servo Universal Tensile Tester Tensile Testing Machine
Application :
This machine is to test the tensile strength, compressive strength and elongation, elongation, stripping, tear, bending, bending and compression of all kinds of materials, semi-finished products and finished products, which is suitable for metal, plastic, rubber, textile, synthetic chemical products, wire and cable, leather industries use.
|
Capacity |
1000N |
|
Unit conversion |
kgf, N |
|
Resolution |
1/10000 |
|
Power precision |
<±0.5% |
|
Test speed |
0-300mm/min |
|
Test space |
320MM (without the jig) |
|
Test width |
Around 120mm |
|
Display data function |
The biggest force, displacement (deformation), time, breakpoint stop, power outage, fracture value, displacement stop |
|
Graph data |
The biggest force, displacement (deformation), time (need to match the software and computer) |
|
Form |
Maximum power point, the breaking point, displacement take point, test time, test pattern, the mean, standard deviation value (need to match the software and computer) |
