Product Description

Product Application
vibration test series equipment are widely used in national defense, aviation, aerospace, communication, electronics, automobile, household electricity and other industries. This type of equipment is used to detect early failures, simulate the actual working condition assessment and structural strength test. The product has a wide range of application, wide application, significant test effect and reliability.

Product Feature:

1.Imported frequency controller, digital control and display frequency, PID regulation function, make the equipment work more stable and reliable.
2. The control parameters are displayed synchronously in real time without human intervention. (various control conditions can be monitored during operation)
3. Precision design and manufacturing, beautiful appearance, ultra quiet work
4. The base of the machine is equipped with vibration avoidance device, which is convenient to install and stable to run, without the need to install the anchor fixing screws.
5.Embedded amplitude prediction program and easy amplitude modulation
6.Four point synchronous excitation, even table vibration
7. Stepless adjustment of amplitude, constant frequency and sweep frequency operation functions to meet various test requirements of different industries
8. Add anti-interference circuit to solve the interference of control circuit caused by strong electromagnetic field
9. Increase working time setter to make test products meet better test requirements

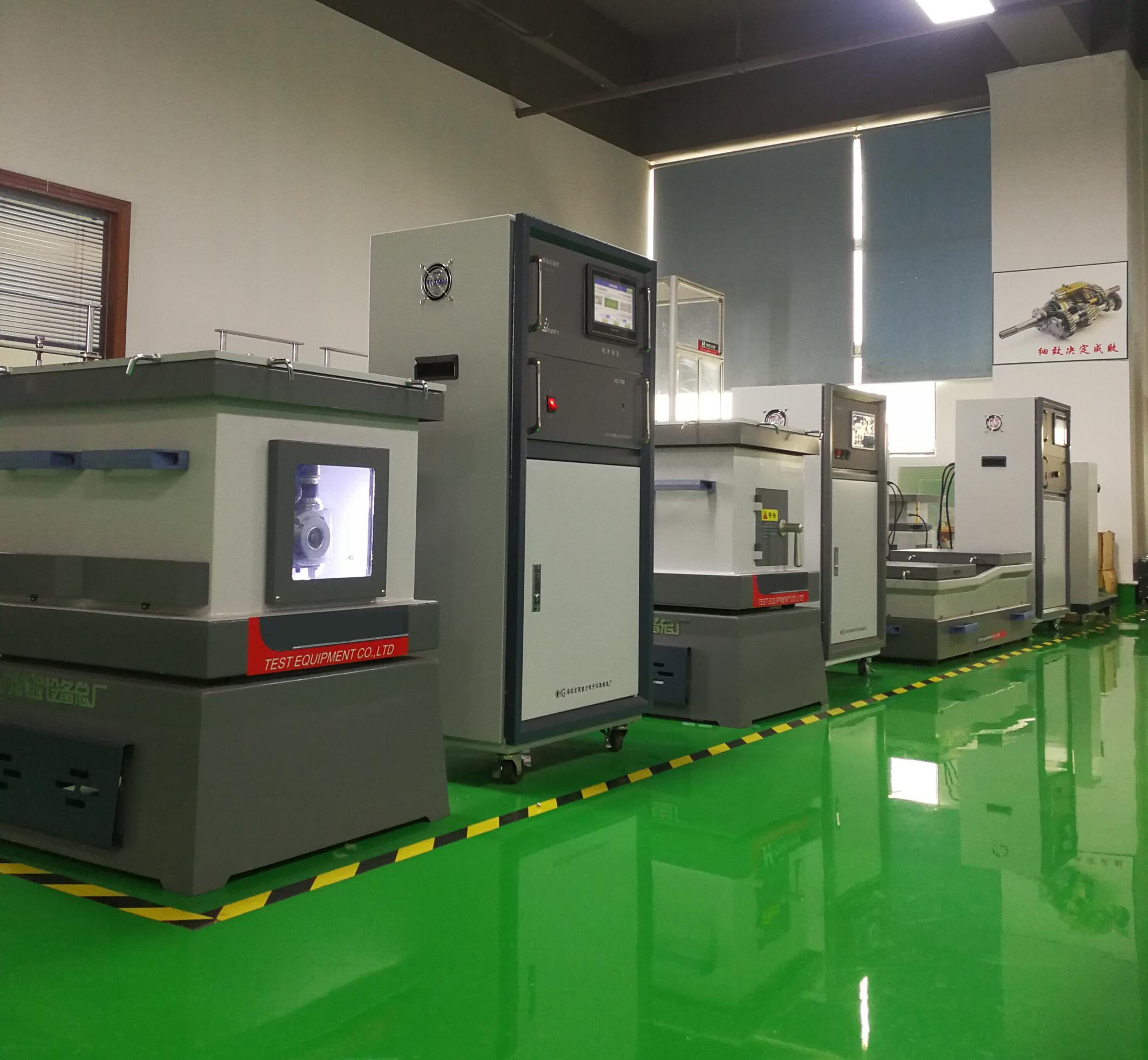

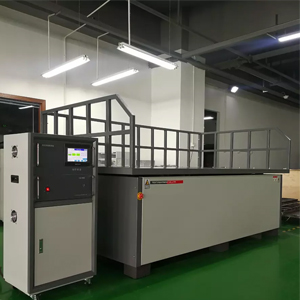

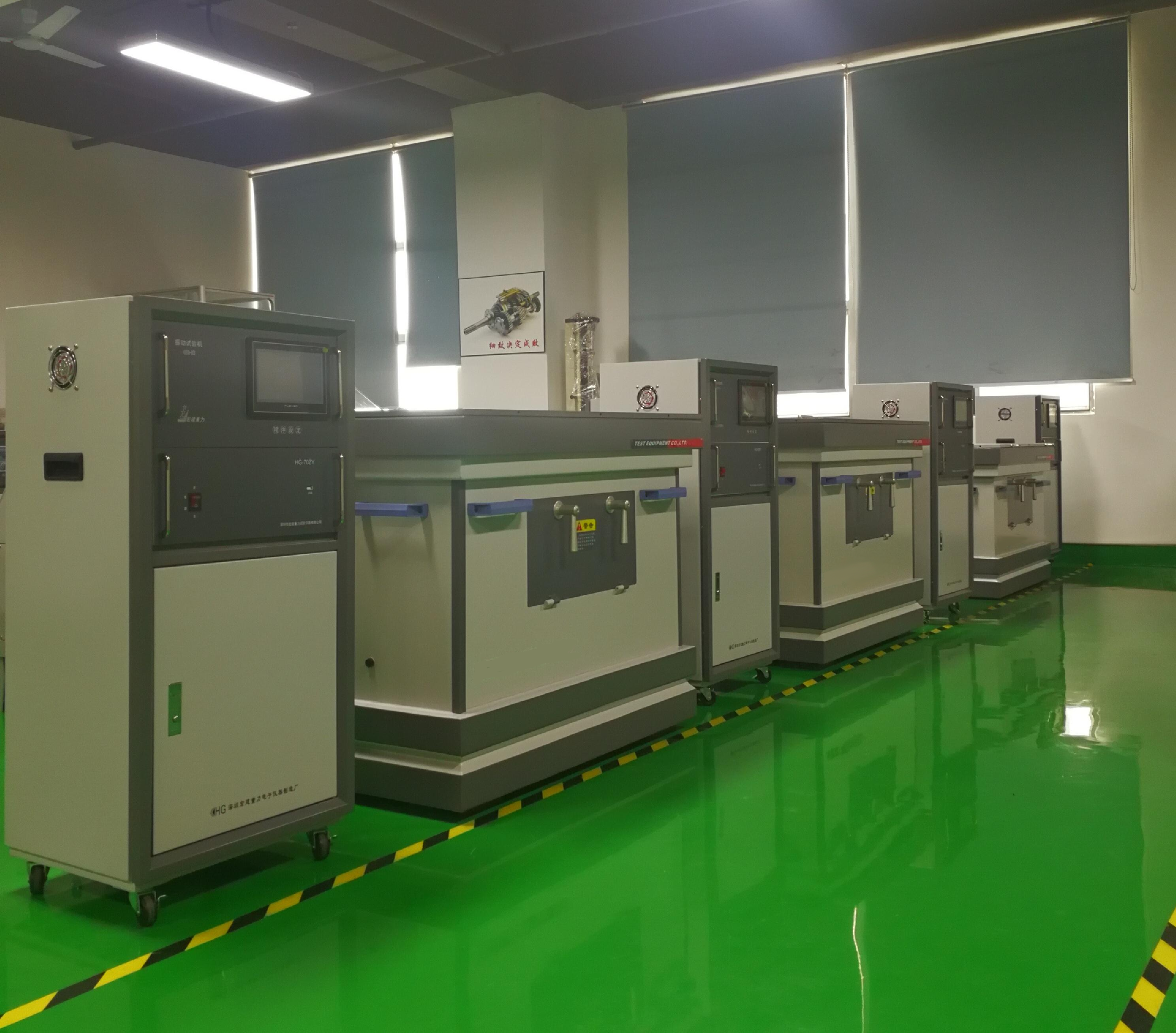

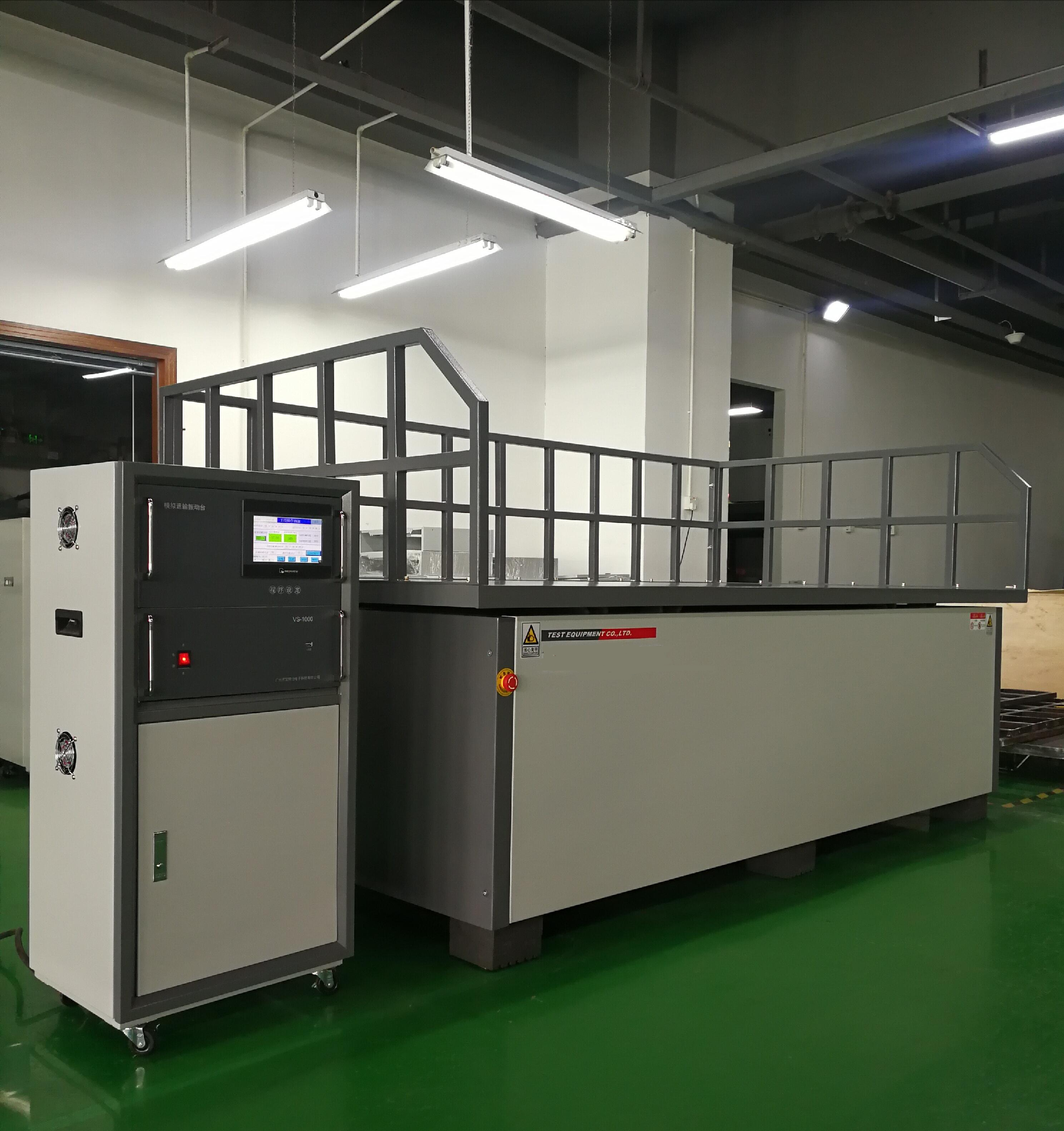

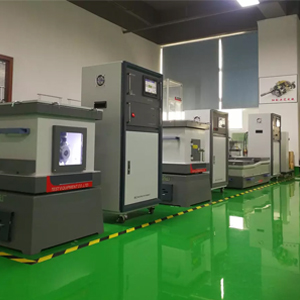

Details Images


Product Paramenters

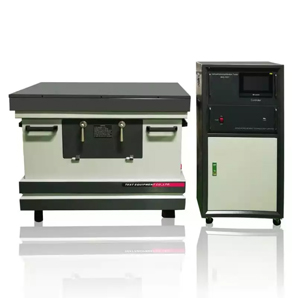

Product Name: electromagnetic vertical + horizontal vibration tester + (5 ~ 2000Hz)
1. Function: sine wave, frequency modulation, sweep frequency, programmable, frequency doubling, logarithm, amplitude modulation, maximum acceleration, time control
2. Working table size (mm): 550 × 550 × 48
3. Outer dimension of the platform is about L * h * w (mm): 980 × 780 × 590
4. Control box size (mm): 500 × 380 × 1050
5. Vibration direction: vertical and horizontal convertible
6. Maximum test load (kg): 30
7. Magnetic field isolation function: magnesium alloy panel can completely isolate magnetic field
8. Frequency modulation function: any frequency within the frequency range must be within (maximum acceleration < 16g, maximum amplitude < 5mm)
9. Frequency sweep function (0.01Hz): (upper frequency / lower frequency / time range) can set real standard frequency sweep back and forth arbitrarily
10. Programmable function (0.01Hz): each 30 segments can be set arbitrarily (frequency / time) and can be cycled.
11. Frequency doubling function (0.01Hz): 30 segments multiplied by ① low to high frequency ② high to low frequency ③ low to high to low frequency / recyclable
12. Logarithmic function (0.01Hz): ① lower to upper frequency ② upper to lower frequency ③ lower to upper to lower frequency -- three modes of logarithmic / recyclable
13. It has fault prompt, fault alarm, input program error and automatic correction function.
14. Password can be set to lock the program.
15. It can be connected to a computer, display vibration curve and print data.
16. Vibrator power (kw): 2.3
17. No load displacement amplitude (adjustable range: mmp-p): 0-5mm
18. Vibration waveform: sine wave
19. Time control: any time can be set (in seconds)
20. Power supply voltage (V): 220 ± 10%
21. Precision: frequency can be displayed to 0.01Hz, precision 0.1Hz
22. FM sweep range (Hz): 5 ～ 2000
23. Meet the standard: GB / t2423.10
