Superior Quality Desktop Robot Intelligent Professional Production Desktop Robot Manufacturing Plant

$258.00 $1680

Previous：White round basin

Next：Nothing

Description

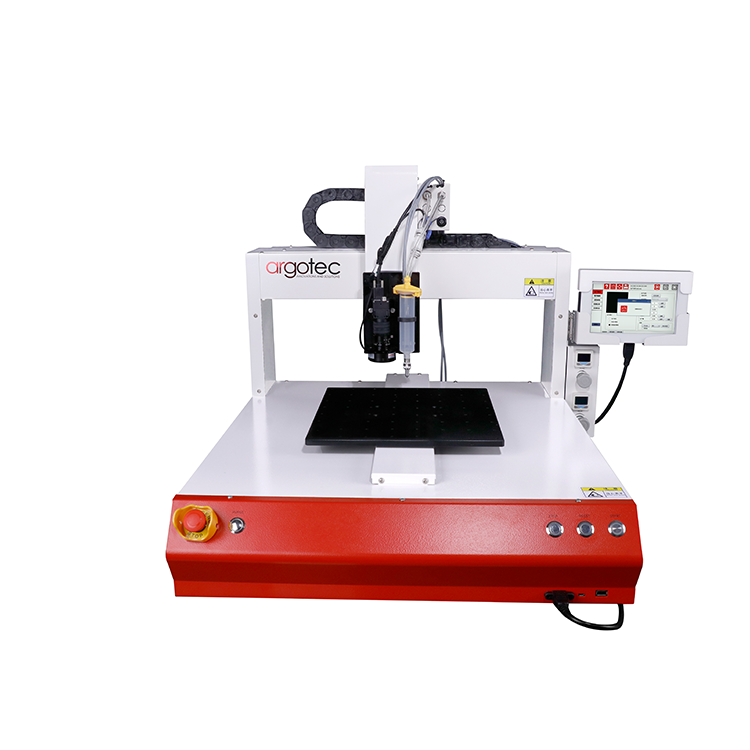

The AR-S series desktop dispensing robot adopts original motion control and visual positioning technology, which perfectly combines precise motion control and visual positioning, and uses a new self-developed embedded tablet computer to replace the traditional industrial computer and display, which is easy to operate , the space utilization rate is high, and the entire system is highly cost-effective.

Features
● Embedded vision system
◆Template matching
◆Edge recognition

● Simple operation
◆7 'handheld tablet programming
◆Simple and professional dispensing programming interface

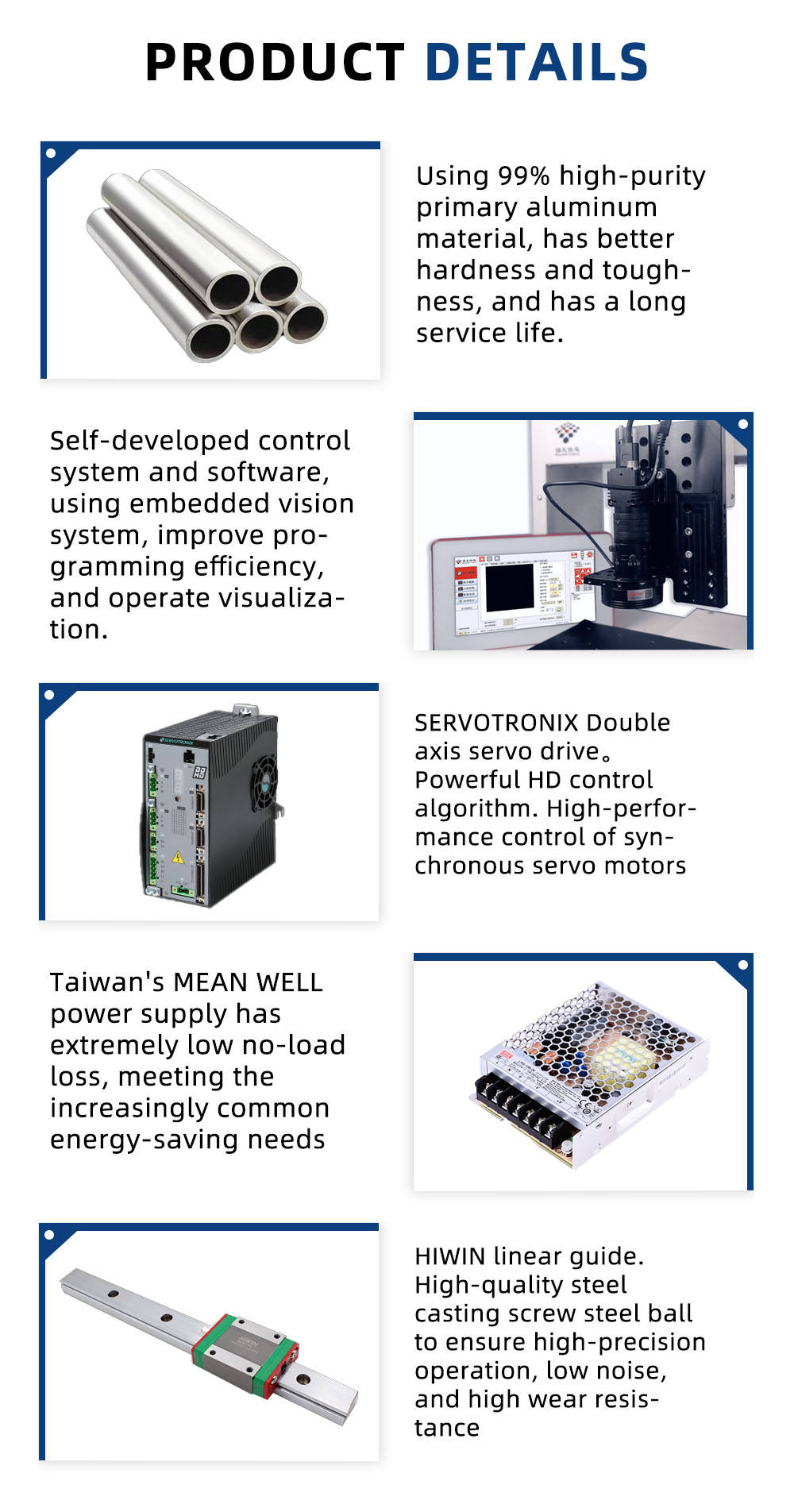

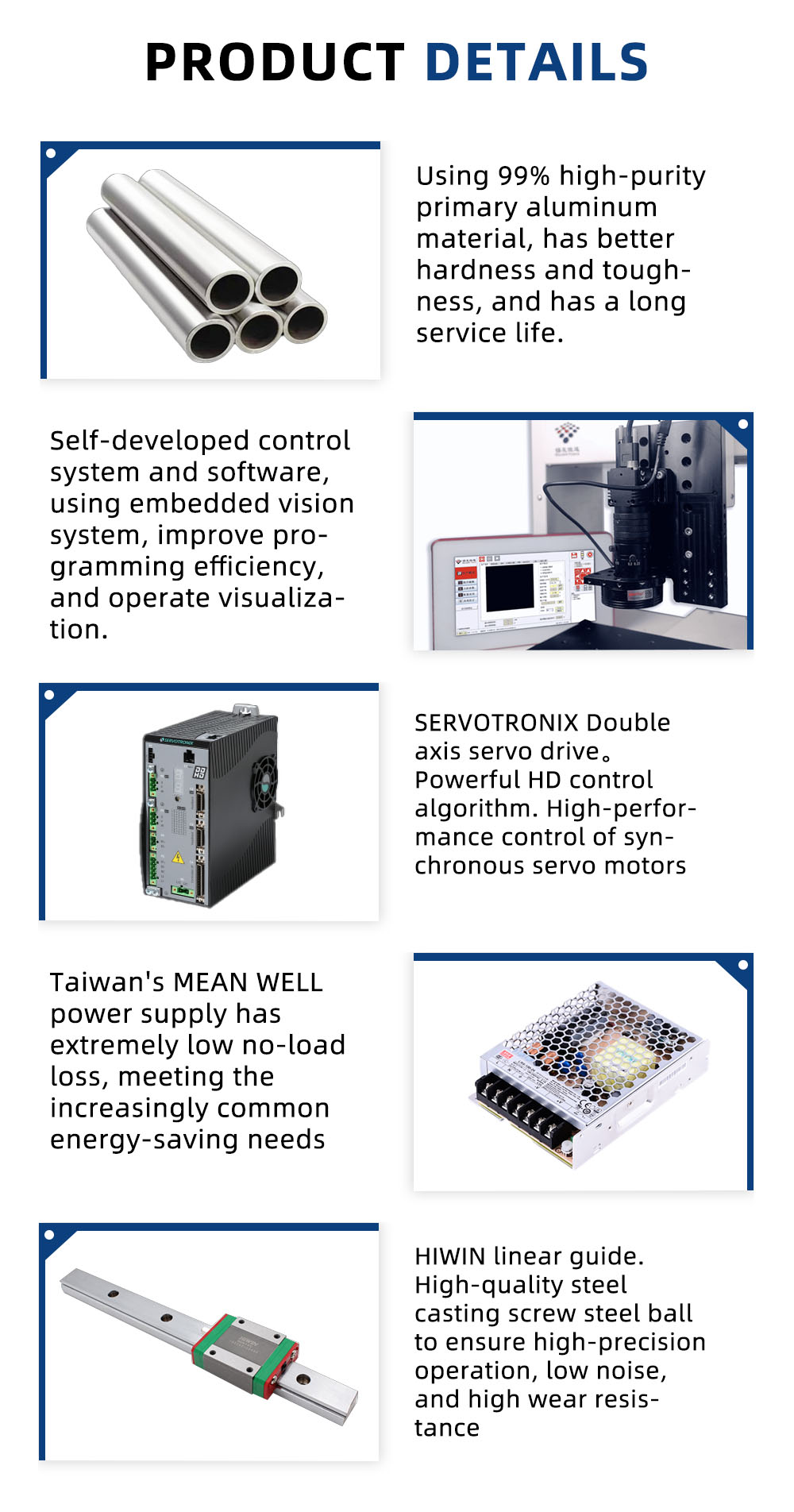

● High-precision motion control
◆Servo motor
◆High-precision ball screw module

● Optional functions
◆Laser height sensor
◆Needle position calibration
◆Low liquid level detector
◆Nozzle cleaner

Specification		AR-300S	AR-400S	AR-500S
Effective travel	X	255mm	355mm	455mm
	Y	300mm	400mm	500mm
	Z	80mm	80mm	80mm
Transmission mode		Servo motor & Ball screw
Max. speed		X/Y:600 mm/s; Z:500 mm/s
Position repeatability		±0.01mm
Payload		Z:5kg; Workbench:15kg
Control System		Touch-panel tablets
Software function		Visual positioning and inspection, batch modification, array copy, automatic fillet, height detection, CAD import, Jet on the fly
Power		AC220V(±10%) / 50HZ / 700W
Size	L	573mm	673mm	773mm
	W	578mm	678mm	778mm
	H	592mm	592mm	592mm

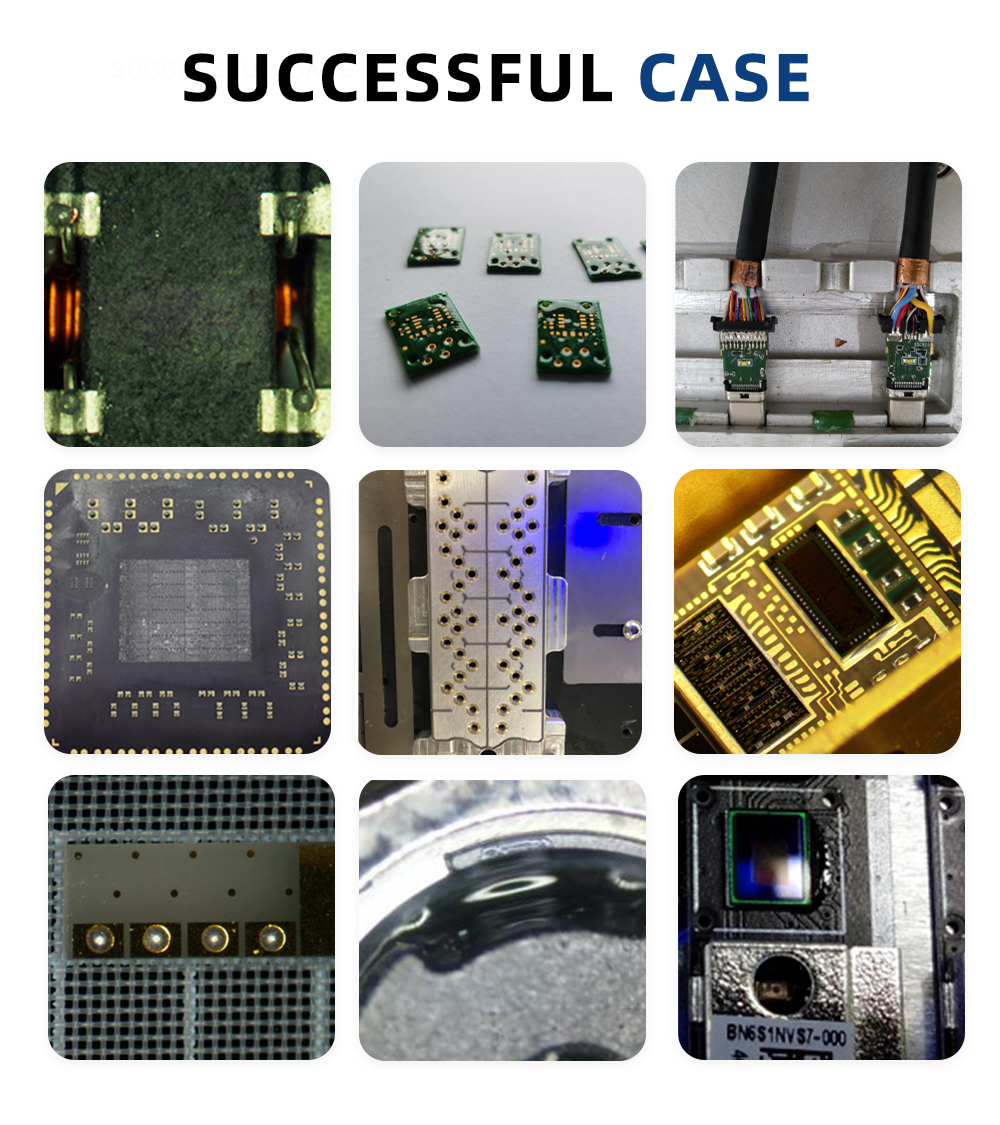

Typical applications

◆Camera modules assembly

●VCM
●Lens Fixing
●Lens Holder Adhesive Dispensing
●Flip-chip Underfill for Image Sensor

◆Fingerprint recognition
●IC encapsulation
●Chip underfill
●Metal frame bonding

◆Smart phone assembly
●Sealing for Cover Frame
●Chip Encapsulation and Underfill for FPC Assembly

◆Acoustics Devices
●Ear Phone, Speaker and Microphone Assembly
●Speaker Frame and Membrane Assembly
●Coil Assembly

◆MEMS
●Au Wire Encapsulation
●Solder Paste Acoustical Seal

◆Vibration Motor
●Lids sealing
●Weld pad protection
